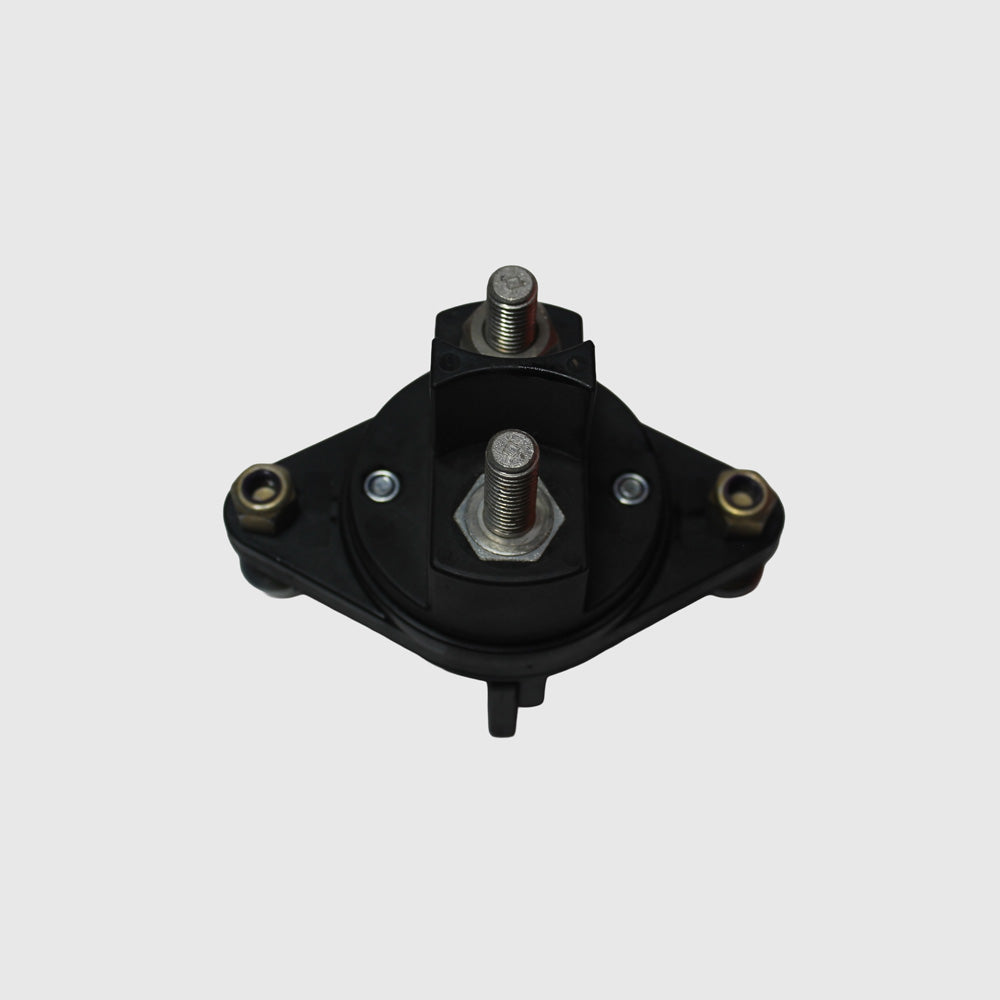

Kissling 32V 300A Battery Disconnect Switch || 35-314-131-S-901

Kissling 32V 300A Heavy-Duty Battery Disconnect Switch - 35-314-131-S-901

Product Description

Industrial-Grade Reliability for Power Management

The Kissling 35 series battery disconnect switch is a high-performance manual switch designed for heavy-duty applications in commercial vehicles, military equipment, and industrial machinery. Engineered by Kissling (a TE Connectivity brand), this switch is world-renowned for its extreme durability and reliability in the harshest environments.

This single-pole switch allows for the safe and immediate isolation of the battery from the vehicle's electrical system, preventing battery drain during storage and providing a critical safety cutoff during maintenance or emergencies.

Key Features:

• Heavy-Duty Construction: Built to withstand extreme vibration, shock, and environmental stress.
• Superior Sealing: Rated at IP67 and IP6K9K, ensuring the switch remains functional even when exposed to water, dust, and high-pressure cleaning.
• High Current Capacity: Supports a continuous current of 300A, making it ideal for large engine starting and high-load electrical systems.
• Safety First: Features a high-visibility red handle for quick identification and operation.
• Long Service Life: Designed for thousands of cycles under full load.

Technical Specifications

• Manufacturer: Kissling (TE Connectivity)
• Model Number: 35-314-131-S-901
• Voltage Rating: Up to 32V DC
• Continuous Current: 300A
• Overload Current: 1500A (for 10 seconds) / 2000A (for 2 seconds)
• Ingress Protection: IP67 / IP6K9K (DIN 40050)
• Operating Temperature: -40°C to +85°C
• Terminal Size: M10
• Mounting: Flange mount

What's in the Box

• 1x Kissling 300A Battery Disconnect Switch
• Mounting hardware (if applicable)

Downloads

• Full Datasheet
• 3D Model (.step)
