Ovartech 6.6kW On-Board Charger (OBC) - CAD662DFA-400A

Product Description

High-Efficiency Charging Solution for 400V EV Systems

The Ovartech CAD662DFA-400A is a high-performance, liquid-cooled On-Board Charger (OBC) designed for the next generation of electric vehicles and industrial conversions. Delivering a powerful 6.6kW of charging capacity, this unit combines high power density with exceptional reliability in a compact form factor.

Engineered specifically for 400V battery architectures, it features advanced resonant technology to achieve high conversion efficiency, reducing heat waste and charging time. Its rugged design ensures stable performance even in the most demanding automotive environments.

Key Features:

• High Efficiency: Utilizes advanced power electronics to achieve up to 95% efficiency.

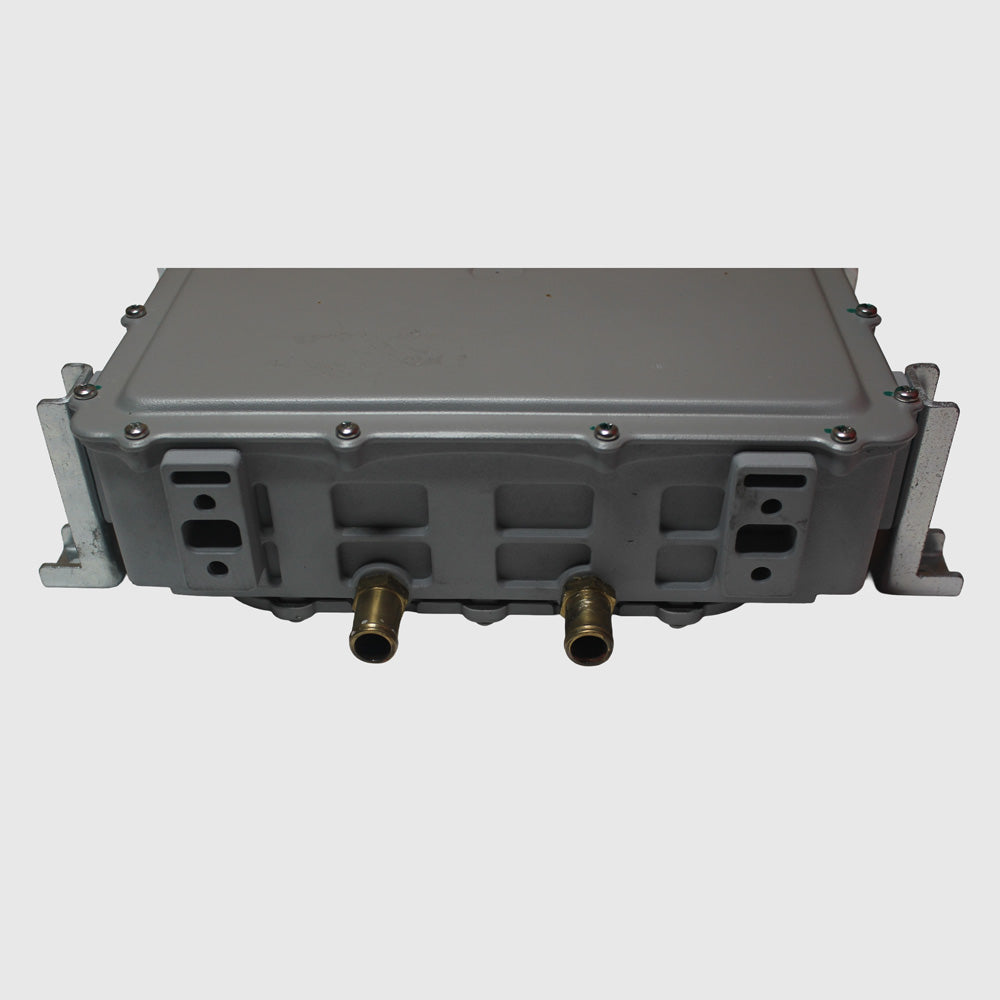

• Liquid Cooled: Optimized thermal management for consistent power delivery without thermal throttling.
• CAN Bus Control: Fully controllable via CAN Bus interface (CAN 2.0B) for seamless integration with your Vehicle Control Unit (VCU) and BMS.
• Ruggedized Design: IP67-rated enclosure to protect against water, dust, and vibration.
• Comprehensive Protection: Built-in safeguards for over-voltage, under-voltage, short-circuit, over-temperature, and reverse polarity.

Technical Specifications

• Manufacturer: Ovartech
• Model: CAD662DFA-400A
• Nominal Output Power: 6.6kW
• Input Voltage Range: 85V – 265V AC (Universal Input)
• Output Voltage Range: 200V – 450V DC (Optimized for 400V systems)
• Max Output Current: 20A
• Efficiency: ≥ 94% at full load
• Communication: CAN Bus 2.0B
• Cooling Method: Liquid Cooling
• Ingress Protection: IP67
• Operating Temperature: -40°C to +85°C

What's in the Box

• 1x Ovartech 6.6kW On-Board Charger
• Connector Pinout Documentation

Downloads

• Full Datasheet
• 3D Model (.step)
